MODEL Procedure

Ordinary regression analysis is based on several assumptions. A key assumption is that the independent variables are in fact statistically independent of the unobserved error component of the model. If this assumption is not true (if the regressor varies systematically with the error), then ordinary regression produces inconsistent results. The parameter estimates are biased.

Regressors might fail to be independent variables because they are dependent variables in a larger simultaneous system. For this reason, the problem of dependent regressors is often called simultaneous equation bias. For example, consider the following two-equation system:

In the first equation, is a dependent, or endogenous, variable. As shown by the second equation, is a function of , which by the first equation is a function of , and therefore depends on . Likewise, depends on and is a dependent regressor in the second equation. This is an example of a simultaneous equation system; and are a function of all the variables in the system.

Using the ordinary least squares (OLS) estimation method to estimate these equations produces biased estimates. One solution to this problem is to replace and on the right-hand side of the equations with predicted values, thus changing the regression problem to the following:

This method requires estimating the predicted values and through a preliminary, or "first stage," instrumental regression. An instrumental regression is a regression of the dependent regressors on a set of instrumental variables, which can be any independent variables useful for predicting the dependent regressors. In this example, the equations are linear and the exogenous variables for the whole system are known. Thus, the best choice for instruments (of the variables in the model) are the variables and .

This method is known as two-stage least squares or 2SLS, or more generally as the instrumental variables method. The 2SLS method for linear models is discussed in Pindyck and Rubinfeld (1981, pp. 191–192). For nonlinear models this situation is more complex, but the idea is the same. In nonlinear 2SLS, the derivatives of the model with respect to the parameters are replaced with predicted values. For further discussion of the use of instrumental variables in nonlinear regression, see the section Choice of Instruments.

To perform nonlinear 2SLS estimation with PROC MODEL, specify the instrumental variables with an INSTRUMENTS statement and specify the 2SLS or N2SLS option in the FIT statement. The following statements show how to estimate the first equation in the preceding example with PROC MODEL:

proc model data=in;
   y1 = a1 + b1 * y2 + c1 * x1;
   fit y1 / 2sls;
   instruments x1 x2;
run;

The 2SLS or instrumental variables estimator can be computed by using a first-stage regression on the instrumental variables as described previously. However, PROC MODEL actually uses the equivalent but computationally more appropriate technique of projecting the regression problem into the linear space defined by the instruments. Thus, PROC MODEL does not produce any "first stage" results when you use 2SLS. If you specify the FSRSQ option in the FIT statement, PROC MODEL prints "First-Stage " statistic for each parameter estimate.

Formally, the that minimizes

is the N2SLS estimator of the parameters. The estimate of at the final iteration is used in the covariance of the parameters given in Table 2. For more information about the properties of nonlinear two-stage least squares, see Amemiya (1985, p. 250).

If the regression equations are not simultaneous (so there are no dependent regressors), seemingly unrelated regression (SUR) can be used to estimate systems of equations with correlated random errors. The large-sample efficiency of an estimation can be improved if these cross-equation correlations are taken into account. SUR is also known as joint generalized least squares or Zellner regression. Formally, the that minimizes

is the SUR estimator of the parameters.

The SUR method requires an estimate of the cross-equation covariance matrix, . PROC MODEL first performs an OLS estimation, computes an estimate, , from the OLS residuals, and then performs the SUR estimation based on . The OLS results are not printed unless you specify the OLS option in addition to the SUR option.

You can specify the to use for SUR by storing the matrix in a SAS data set and naming that data set in the SDATA= option. You can also feed the computed from the SUR residuals back into the SUR estimation process by specifying the ITSUR option. You can print the estimated covariance matrix by using the COVS option in the FIT statement.

The SUR method requires estimation of the matrix, and this increases the sampling variability of the estimator for small sample sizes. The efficiency gain that SUR has over OLS is a large sample property, and you must have a reasonable amount of data to realize this gain. For a more detailed discussion of SUR, see Pindyck and Rubinfeld (1981, pp. 331–333).

If the equation system is simultaneous, you can combine the 2SLS and SUR methods to take into account both dependent regressors and cross-equation correlation of the errors. This is called three-stage least squares (3SLS).

Formally, the that minimizes

is the 3SLS estimator of the parameters. For more information about 3SLS, see Gallant (1987, p. 435).

Residuals from the 2SLS method are used to estimate the matrix required for 3SLS. The results of the preliminary 2SLS step are not printed unless the 2SLS option is also specified.

To use the three-stage least squares method, specify an INSTRUMENTS statement and use the 3SLS or N3SLS option in either the PROC MODEL statement or a FIT statement.

For systems of equations with heteroscedastic errors, generalized method of moments (GMM) can be used to obtain efficient estimates of the parameters. For alternatives to GMM, see the section Heteroscedasticity.

Consider the nonlinear model

where is a vector of instruments and is an unobservable disturbance vector that can be serially correlated and nonstationary.

In general, the following orthogonality condition is desired:

This condition states that the expected crossproducts of the unobservable disturbances, , and functions of the observable variables are set to 0. The first moment of the crossproducts is

where .

The case where is considered here, where p is the number of parameters.

Estimate the true parameter vector by the value of that minimizes

where

The parameter vector that minimizes this objective function is the GMM estimator. GMM estimation is requested in the FIT statement with the GMM option.

The variance of the moment functions, , can be expressed as

where is estimated as

Note that is a matrix. Because Var does not decrease with increasing n, you consider estimators of of the form

where is a scalar function that computes the bandwidth parameter, is a scalar valued kernel, and the Kronecker delta function, , is 1 if and 0 otherwise. The diagonal matrix is used for a small sample degrees of freedom correction (Gallant 1987). The initial used for the estimation of is obtained from a 2SLS estimation of the system. The degrees of freedom correction is handled by the VARDEF= option as it is for the S matrix estimation.

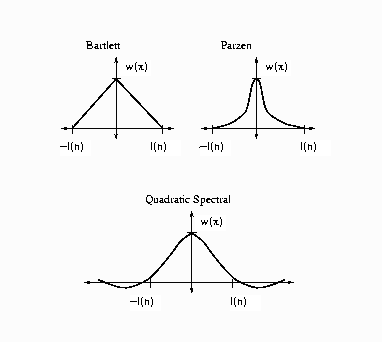

The following kernels are supported by PROC MODEL. They are listed with their default bandwidth functions.

Bartlett: KERNEL=BART

Parzen: KERNEL=PARZEN

Quadratic spectral: KERNEL=QS

For more information about the properties of these and other kernels, see Andrews (1991). Kernels are selected with the KERNEL= option; KERNEL=PARZEN is the default. The general form of the KERNEL= option is

KERNEL=( PARZEN | QS | BART, c, e )

where the and are used to compute the bandwidth parameter as

The bias of the standard error estimates increases for large bandwidth parameters. A warning message is produced for bandwidth parameters greater than . For a discussion of the computation of the optimal , see Andrews (1991).

The "Newey-West" kernel (Newey and West 1987) corresponds to the Bartlett kernel with bandwidth parameter . That is, if the "lag length" for the Newey-West kernel is , then the corresponding MODEL procedure syntax is KERNEL=(bart, L+1, 0).

Andrews and Monahan (1992) show that using prewhitening in combination with GMM can improve confidence interval coverage and reduce over rejection of t statistics at the cost of inflating the variance and MSE of the estimator. Prewhitening can be performed by using the %AR macros.

For the special case that the errors are not serially correlated—that is,

the estimate for reduces to

The option KERNEL=(kernel,0,) is used to select this type of estimation when using GMM.

Iterated generalized method of moments is similar to the iterated versions of 2SLS, SUR, and 3SLS. The variance matrix for GMM estimation is reestimated at each iteration with the parameters determined by the GMM estimation. The iteration terminates when the variance matrix for the equation errors change less than the CONVERGE= value. Iterated generalized method of moments is selected by the ITGMM option in the FIT statement. For some indication of the small sample properties of ITGMM, see Ferson and Foerster (1993).

The SMM method uses simulation techniques in model inference and estimation. It is appropriate for estimating models in which integrals appear in the objective function, and these integrals can be approximated by simulation. There might be various reasons for integrals to appear in an objective function (for example, transformation of a latent model into an observable model, missing data, random coefficients, heterogeneity, and so on).

This simulation method can be used with all the estimation methods except full information maximum likelihood (FIML) in PROC MODEL. SMM, also known as simulated generalized method of moments (SGMM), is the default estimation method because of its nice properties.

A different approach to the simultaneous equation bias problem is the full information maximum likelihood (FIML) estimation method (Amemiya 1977).

Compared to the instrumental variables methods (2SLS and 3SLS), the FIML method has these advantages and disadvantages:

The full information maximum likelihood estimators of and are the and that minimize the negative log-likelihood function:

The option FIML requests full information maximum likelihood estimation. If the errors are distributed normally, FIML produces efficient estimators of the parameters. If instrumental variables are not provided, the starting values for the estimation are obtained from a SUR estimation. If instrumental variables are provided, then the starting values are obtained from a 3SLS estimation. The log-likelihood value and the l norm of the gradient of the negative log-likelihood function are shown in the estimation summary.

The multivariate t distribution is specified by using the ERRORMODEL statement with the T option. Other method specifications (FIML and OLS, for example ) are ignored when the ERRORMODEL statement is used for a distribution other than normal.

The probability density function for the multivariate t distribution is

where m is the number of equations and is the degrees of freedom.

The maximum likelihood estimators of and are the and that minimize the negative log-likelihood function:

The ERRORMODEL statement is used to request the t distribution maximum likelihood estimation. An OLS estimation is done to obtain initial parameter estimates and MSE.var estimates. Use NOOLS to turn off this initial estimation. If the errors are distributed normally, t distribution estimation produces results similar to FIML.

The multivariate model has a single shared degrees-of-freedom parameter, which is estimated. The degrees-of-freedom parameter can also be set to a fixed value. The log-likelihood value and the l norm of the gradient of the negative log-likelihood function are shown in the estimation summary.

Since a variance term is explicitly specified by using the ERRORMODEL statement, is estimated as a correlation matrix and is normalized by the variance. The gradient of the negative log-likelihood function with respect to the degrees of freedom is

The gradient of the negative log-likelihood function with respect to the parameters is

where

and

The estimator of the variance-covariance of (COVB) for the t distribution is the inverse of the likelihood Hessian. The gradient is computed analytically, and the Hessian is computed numerically.

(View the complete code for this example.)

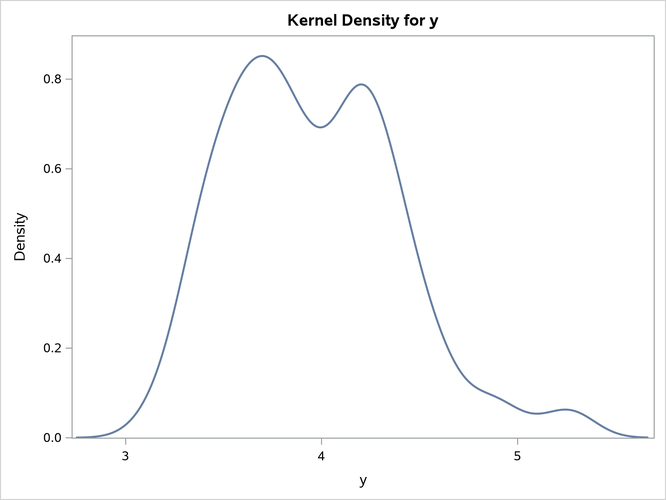

The following SAS statements fit a model that uses least squares as the likelihood function, but represent the distribution of the residuals with an empirical cumulative distribution function (CDF). The plot of the empirical probability distribution is shown in Figure 24.

data t;  /* Sum of two normals  */
   format date monyy.;
   do t = 0 to 9.9 by 0.1;
      date = intnx( 'month', '1jun90'd, (t*10)-1 );
      y =  0.1 * (rannor(123)-10) +
            .5 * (rannor(123)+10);
      output;
   end;
run;

ods select Model.Liklhood.ResidSummary
           Model.Liklhood.ParameterEstimates;

proc model data=t time=t itprint;
   dependent y;
   parm a 5;

   y = a;
   obj = resid.y * resid.y;
   errormodel y ~ general( obj )
   cdf=(empirical=(tails=( normal percent=10)));

   fit y / outsn=s out=r;
   id  date;

   solve y / data=t(where=(date='1aug98'd))
             residdata=r sdata=s
             random=200 seed=6789 out=monte ;
run;



proc kde data=monte;
   univar y / plots=density;
run;

For simulation, if the CDF for the model is not built in to the procedure, you can use the CDF=EMPIRICAL() option. This uses the sorted residual data to create an empirical CDF. For computing the inverse CDF, the program needs to know how to handle the tails. For continuous data, the tail distribution is generally poorly determined. To counter this, the PERCENT= option specifies the percentage of the observations to use in constructing each tail. The default for the PERCENT= option is 10.

A normal distribution or a t distribution is used to extrapolate the tails to infinity. The standard errors for this extrapolation are obtained from the data so that the empirical CDF is continuous.
