VARMAX Procedure

proc iml;
   sig = 100*i(2);
   phi = {-0.2 0.1, 0.5 0.2, 0.8 0.7, -0.4 0.6};
   call varmasim(y,phi) sigma=sig n=100 initial=0
                        seed=45876;
   cn = {'y1' 'y2'};
   create simul2 from y[colname=cn];
   append from y;
quit;

data simul2;
   set simul2;
   date = intnx( 'year', '01jan1900'd, _n_-1 );
   format date year4. ;
run;

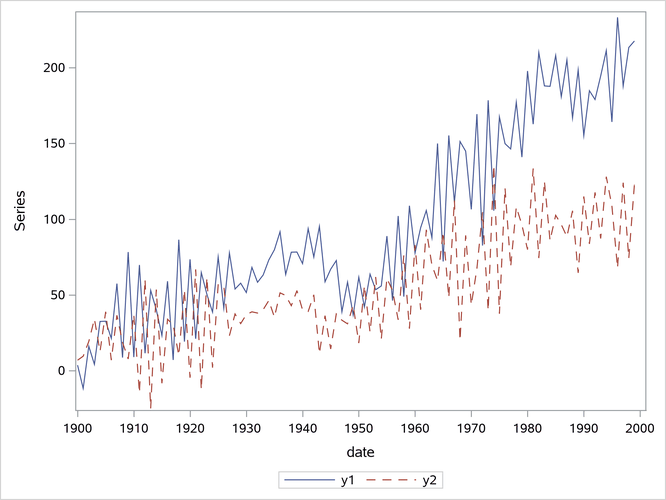

proc sgplot data=simul2;
   series x=date y=y1 / lineattrs=(pattern=solid);
   series x=date y=y2 / lineattrs=(pattern=dash);
   yaxis label="Series";
run;

The following statements use the Johansen cointegration rank test. The COINTTEST=(JOHANSEN) option performs the Johansen trace test and is equivalent to specifying the COINTTEST option with no additional suboptions or specifying the COINTTEST=(JOHANSEN=(TYPE=TRACE)) option.

/*--- Cointegration Test ---*/

proc varmax data=simul2;
   model y1 y2 / p=2 noint dftest cointtest=(johansen);
run;

Figure 13 shows the output for Dickey-Fuller tests for the nonstationarity of each series and the Johansen cointegration rank test between series.

In Dickey-Fuller tests, the second column specifies three types of models, which are zero mean, single mean, or trend. The third column (Rho) and the fifth column (Tau) are the test statistics that are used to test the null hypothesis that the series has a unit root. Other columns are their p-values. You can see that both series have unit roots. For a description of Dickey-Fuller tests, see the section PROBDF Function for Dickey-Fuller Tests in Chapter 5, SAS Macros and Functions.

In the "Cointegration Rank Test Using Trace" table, the last two columns explain the drift in the model or process. Because the NOINT option is specified, the model is

The column Drift in ECM indicates that there is no separate drift in the error correction model, and the column Drift in Process indicates that the process has a constant drift before differencing.

H0 is the null hypothesis, and H1 is the alternative hypothesis. The first row tests the cointegration rank against , and the second row tests against . The trace test statistics in the fourth column are computed by , where T is the available number of observations and is the eigenvalue in the third column. The p-values for these statistics are output in the fifth column. If you compare the p-value in each row to the significance level of interest (such as 5%), the null hypothesis that there is no cointegrated process (H0: ) is rejected, whereas the null hypothesis that there is at most one cointegrated process (H0: ) cannot be rejected.

The following statements fit a VECM(2) form to the simulated data:

/*--- Vector Error Correction Model ---*/

proc varmax data=simul2;
   model y1 y2 / p=2 noint lagmax=3
                 print=(iarr estimates);
   cointeg rank=1 normalize=y1;
run;

The results in Figure 13 indicate that the time series are cointegrated with rank = 1. So you might want to specify the RANK=1 option in the COINTEG statement. For normalizing the value of the cointegrated vector, you specify the normalized variable by using the NORMALIZE= option in the COINTEG statement. The COINTEG statement produces the estimates of the long-run parameter, , and the adjustment coefficient, . The PRINT=(IARR) option provides the VAR(2) representation.

The VARMAX procedure output is shown in Figure 14 through Figure 17. In Figure 14, "1" indicates the first column of the and matrices. Because the cointegration rank is 1 in the bivariate system, and are two-dimensional vectors. The estimated cointegrating vector is . Therefore, the long-run relationship between and is . The first element of is 1 because is specified as the normalized variable. Asymptotically, follows a normal distribution, and the t values and p-values of its elements are shown in the "Alpha and Beta Parameter Estimates" table; however, because follows a nonnormal distribution, the corresponding standard errors, t values, and p-values are missing. The Variable column shows the variables that correspond to the coefficients. For example, for the coefficient (the ith element in the jth column of ), ALPHA, the variable is the inner product of the transpose of the jth column of (Beta[,j]) and the vector of lag 1 dependent variables (DEP(t–1)).

Figure 15 shows the parameter estimates in terms of lag 1 coefficients, , and lag 1 first-differenced coefficients, , and their significance. "Alpha * Beta" indicates the coefficients of and is obtained by multiplying the Alpha and Beta estimates in Figure 14. The parameter AR1 (which is shown in the "Model Parameter Estimates" table) corresponds to the elements in the "Alpha * Beta" matrix. The parameter AR2 corresponds to the elements in the differenced lagged AR coefficient matrix. The "D_" prefixed to a variable name in Figure 15 implies differencing.

Figure 16 shows the parameter estimates of the innovations covariance matrix and their significance.

The fitted model is represented as

The PRINT=(IARR) option in the previous SAS statements prints the reparameterized coefficient estimates. Because LAGMAX=3 in those statements, the coefficient matrix of lag 3 is zero.

The VECM(2) form in Figure 17 can be rewritten as the following second-order vector autoregressive model:
