VARMAX Procedure

(View the complete code for this example.)

Let denote a k-dimensional time series vector of random variables of interest. The pth-order VAR process is written as

where is a vector white noise process such that , , and for ; is a constant vector; and is a matrix.

Analyzing and modeling the series jointly enables you to understand the dynamic relationships over time among the series and to improve the accuracy of forecasts for individual series by using the additional information available from the related series and their forecasts.

Consider the first-order stationary bivariate vector autoregressive model:

The following IML procedure statements simulate a bivariate vector time series from this model to provide test data for the VARMAX procedure:

proc iml;
   sig = {1.0  0.5, 0.5 1.25};
   phi = {1.2 -0.5, 0.6 0.3};
   /* simulate the vector time series */
   call varmasim(y,phi) sigma = sig n = 100 seed = 34657;
   cn = {'y1' 'y2'};
   create simul1 from y[colname=cn];
   append from y;
quit;

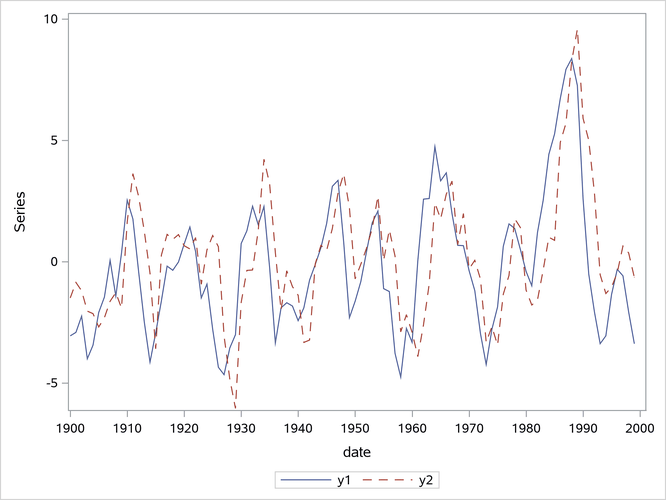

The following statements plot the simulated vector time series , which is shown in Figure 1:

data simul1;
   set simul1;
   date = intnx( 'year', '01jan1900'd, _n_-1 );
   format date year4.;
run;

proc sgplot data=simul1;
   series x=date y=y1 / lineattrs=(pattern=solid);
   series x=date y=y2 / lineattrs=(pattern=dash);
   yaxis label="Series";
run;

The following statements fit a VAR(1) model to the simulated data:

/*--- Vector Autoregressive Model ---*/

proc varmax data=simul1;
   id date interval=year;
   model y1 y2 / p=1 noint lagmax=3
                 print=(estimates diagnose);
   output out=for lead=5;
run;

First, you specify the input data set in the PROC VARMAX statement. Then, you use the MODEL statement to designate the dependent variables, and . To estimate a zero-mean VAR model, you specify the order of the autoregressive model in the P= option and the NOINT option. The MODEL statement fits the model to the data and prints parameter estimates and their significance. The PRINT=ESTIMATES option prints the matrix form of parameter estimates, and the PRINT=DIAGNOSE option prints various diagnostic tests. The LAGMAX=3 option prints the output for the residual diagnostic checks.

To output the forecasts to a data set, you specify the OUT= option in the OUTPUT statement. If you want to forecast five steps ahead, you use the LEAD=5 option. The ID statement specifies the yearly interval between observations and provides the Time column in the forecast output.

The VARMAX procedure output is shown in Figure 2 through Figure 10. The VARMAX procedure first displays descriptive statistics, as shown in Figure 2. The Type column indicates that the variables are dependent variables. The N column indicates the number of nonmissing observations.

Figure 3 shows the model type and the estimation method that is used to fit the model to the simulated data. It also shows the AR coefficient matrix in terms of lag 1, the schematic representation, and the parameter estimates and their significance that can indicate how well the model fits the data.

The "AR" table shows the AR coefficient matrix. The "Schematic Representation" table schematically represents the parameter estimates and enables you to easily verify their significance in matrix form.

In the "Model Parameter Estimates" table, the first column shows the variable on the left side of the equation; the second column is the parameter name AR, which indicates the (i, j) element of the lag l autoregressive coefficient; the next four columns provide the estimate, standard error, t value, and p-value for the parameter; and the last column is the regressor that corresponds to the displayed parameter.

The fitted VAR(1) model with estimated standard errors in parentheses is given as

Clearly, all parameter estimates in the coefficient matrix are significant.

The model can also be written as two univariate regression equations:

The table in Figure 4 shows the innovation covariance matrix estimates, the log likelihood, and the various information criteria results. The variable names in the table for the innovation covariance matrix estimates are printed for convenience: means the innovation for , and means the innovation for . The log likelihood for a VAR model that is estimated through least squares method is defined as , where is the sample size except the presample being skipped because of the AR lag order, is the number of dependent variables, and is the maximum likelihood estimate (MLE) of innovation covariance matrix. The matrix is computed from the reported least squares estimate of the innovation covariance matrix, , by adjusting the degrees of freedom. , where is the number of parameters in each equation. You can use the information criteria to compare the fit of competing models to a set of data. The model that has a smaller value of the information criterion is preferred when it is compared to other models. For more information about how to calculate the information criteria, see the section Multivariate Model Diagnostic Checks.

Figure 5 shows the cross covariances of the residuals. The values of the lag 0 are slightly different from Figure 4 because of the different degrees of freedom.

Figure 6 and Figure 7 show tests for white noise residuals that are based on the cross correlations of the residuals. The output shows that you cannot reject the null hypothesis that the residuals are uncorrelated.

The VARMAX procedure provides diagnostic checks for the univariate form of the equations. The table in Figure 8 describes how well each univariate equation fits the data. From the two univariate regression equations shown in Figure 3, the values of in the second column of Figure 8 are 0.84 and 0.79. The standard deviations in the third column are the square roots of the diagonal elements of the covariance matrix from Figure 4. The F statistics in the fourth column test the null hypotheses and , where is the (i, j) element of the matrix . The last column shows the p-values of the F statistics. The results show that each univariate model is significant.

The check for white noise residuals in terms of the univariate equation is shown in Figure 9. This output contains information that indicates whether the residuals are correlated and heteroscedastic. In the first table, the second column contains the Durbin-Watson test statistics to test the null hypothesis that the residuals are uncorrelated. The third and fourth columns show the Jarque-Bera normality test statistics and their p-values to test the null hypothesis that the residuals have normality. The last two columns show F statistics and their p-values for ARCH(1) disturbances to test the null hypothesis that the residuals have equal covariances. The second table includes F statistics and their p-values for AR(1), AR(1,2), AR(1,2,3) and AR(1,2,3,4) models of residuals to test the null hypothesis that the residuals are uncorrelated.

The table in Figure 10 shows forecasts, their prediction errors, and 95% confidence limits. For more information, see the section Forecasting.
