Example 33.13 Bivariate Model: Sales of Mink and Muskrat Furs

(View the complete code for this example.)

This example considers a bivariate time series of logarithms of the annual sales of mink and muskrat furs by the Hudson’s Bay Company for the years 1850–1911. These data have been analyzed previously by many authors, including Chan and Wallis (1978); Harvey (1989); Reinsel (1997). There is known to be a predator-prey relationship between the mink and muskrat species: minks are principal predators of muskrats. Previous analyses for these data generally conclude the following:

  • An increase in the muskrat population is followed by an increase in the mink population a year later, and an increase in the mink population is followed by a decrease in the muskrat population a year later.

  • Because muskrats are not the only item in the mink diet and because both mink and muskrat populations are affected by many other factors, the model must include additional terms to explain the year-to-year variation.

The analysis in this example, which loosely follows the discussion in Harvey (1989, chap. 8, sec. 8), also leads to similar conclusions. It begins by taking Harvey’s model 8.8.8 (a and b), with autoregressive order one, as the starting model—that is, it assumes that the bivariate (mink, muskrat) process bold upper Y Subscript t satisfies the following relationship:

StartLayout 1st Row 1st Column mu mu Subscript t 2nd Column equals mu mu Subscript t minus 1 Baseline plus beta beta plus nu nu Subscript t Baseline 2nd Row 1st Column bold upper Y Subscript t 2nd Column equals mu mu Subscript t Baseline plus normal upper Phi normal upper Phi bold upper Y Subscript t minus 1 Baseline plus xi xi Subscript t EndLayout

This model postulates that bold upper Y Subscript t can be expressed as a sum of three terms: mu mu Subscript t, a bivariate trend that is modeled as a random walk with drift beta beta; normal upper Phi normal upper Phi bold upper Y Subscript t minus 1, an AR(1) correction; and xi xi Subscript t, a bivariate Gaussian white noise disturbance. It is assumed that the AR coefficient matrix normal upper Phi normal upper Phi is stable (that is, its eigenvalues are less than 1 in magnitude) and that the bivariate disturbances nu nu Subscript t (white noise associated with mu mu Subscript t) and xi xi Subscript t are mutually independent.

The following statements show how you can specify this model in the SSM procedure:

proc ssm data=furs plots=residual;

   /* Specify the ID variable */
   id year interval=year;

   /* Define parameters */
   parms rho1 rho2/ lower=-0.9999 upper=0.9999;
   parms msd1 msd2 esd1 esd2 / lower=1.e-6;

   /* Specify the terms with lagged response variables */
   deplag LagsForMink(LogMink) LogMink(lags=1) LogMusk(lags=1);
   deplag LagsForMusk(LogMusk) LogMink(lags=1) LogMusk(lags=1);

   /* Specify the bivariate trend */
   array rwQ{2,2};
   rwQ[1,1] = msd1*msd1; rwQ[1,2] = msd1*msd2*rho1;
   rwQ[2,1] = rwQ[1,2]; rwQ[2,2]=msd2*msd2;
   state alpha(2) type=RW W(I) cov(g)=(rwQ);
   comp minkLevel = alpha[1];
   comp muskLevel = alpha[2];

   /* Specify the bivariate white noise */
   array wnQ{2,2};
   wnQ[1,1] = esd1*esd1; wnQ[1,2] = esd1*esd2*rho2;
   wnQ[2,1] = wnQ[1,2]; wnQ[2,2]=esd2*esd2;
   state error(2) type=WN cov(g)=(wnQ);
   comp minkWn = error[1];
   comp muskWn = error[2];

   /* Specify the observation equation */
   model LogMink = LagsForMink minkLevel minkWn;
   model LogMusk = LagsForMusk muskLevel muskWn;

   /* Specify an output data set to store component estimates */
   output out=salesFor press;
run;

The different parts of the program are explained as follows:

  • The PARMS statements define parameters that are used to form the elements of normal upper Sigma 1 (the covariance of nu nu Subscript t, the disturbance term in the bivariate level equation) and normal upper Sigma 2 (the covariance of xi xi Subscript t, which is the bivariate white noise). normal upper Sigma 1 is parameterized as (msd1*msd1 msd1*msd2*rho1; msd1*msd2*rho1 msd2*msd2). normal upper Sigma 2 is similarly parameterized by using esd1, esd2, and rho2. In addition to ensuring that normal upper Sigma 1 and normal upper Sigma 2 are positive semidefinite, it turns out that this parameterization leads to an interpretable model at the end.

  • The DEPLAG statements help define the terms that are associated with normal upper Phi normal upper Phi bold upper Y Subscript t minus 1.

  • The remaining statements are self-explanatory.

Output 33.13.1 shows the estimate of the drift vector beta beta in the equation of mu mu Subscript t (mu mu Subscript t Baseline equals mu mu Subscript t minus 1 Baseline plus beta beta plus nu nu Subscript t).

Output 33.13.1: Estimate of the Drift Vector beta beta

Estimate of the State Equation Regression Vector
State Element Index Estimate Standard
Error		 t Value Pr > |t|
alpha 1 -0.000817 0.0323 -0.03 0.9798
alpha 2 0.005953 0.0258 0.23 0.8175


Clearly, both elements of beta beta are statistically insignificant, and the mu mu Subscript t equation can be simplified as mu mu Subscript t Baseline equals mu mu Subscript t minus 1 Baseline plus nu nu Subscript t. Next, Output 33.13.2 shows the estimates of the elements of normal upper Sigma 1, and normal upper Sigma 2, and Output 33.13.3 shows the estimates of the lag coefficients.

Output 33.13.2: Estimates of normal upper Sigma 1, and normal upper Sigma 2

Estimates of Named Parameters
Parameter Estimate Standard
Error		 t Value
rho1 0.8310 0.1377 6.03
rho2 -0.9999 1.6555 -0.60
msd1 0.2500 0.0354 7.06
msd2 0.1991 0.0592 3.36
esd1 0.0662 0.0597 1.11
esd2 0.1344 0.0527 2.55


Output 33.13.3: Estimates of Lag Coefficients (Elements of normal upper Phi normal upper Phi)

Model Parameter Estimates
Component Type Parameter Estimate Standard
Error		 t Value
LagsForMink Lag Coefficient Of LogMink Lag[1] -0.0011 0.173 -0.01
LagsForMink Lag Coefficient Of LogMusk Lag[1] 0.3349 0.137 2.45
LagsForMusk Lag Coefficient Of LogMink Lag[1] -0.9905 0.142 -6.98
LagsForMusk Lag Coefficient Of LogMusk Lag[1] 0.6570 0.121 5.44


The main points of the output can be summarized as follows:

  • phi11, the first element of normal upper Phi normal upper Phi, which relates the current value of LogMink with its lagged value, is statistically insignificant. That is, lagged LogMink term could be dropped from the model equation for LogMink.

  • rho2, the correlation coefficient between the elements of xi xi Subscript t—the bivariate noise vector in the equation bold upper Y Subscript t Baseline equals mu mu Subscript t Baseline plus normal upper Phi normal upper Phi bold upper Y Subscript t minus 1 Baseline plus xi xi Subscript t—is very near its lower boundary of –1 (in such cases the standard error of the parameter estimate is not reliable). This implies that the two elements of xi xi Subscript t are perfectly negatively correlated.

Taken together, these observations suggest the reduced model

StartLayout 1st Row 1st Column mu mu Subscript t 2nd Column equals mu mu Subscript t minus 1 Baseline plus nu nu Subscript t Baseline 2nd Row 1st Column bold upper Y Subscript t 2nd Column equals mu mu Subscript t Baseline plus normal upper Phi normal upper Phi bold upper Y Subscript t minus 1 Baseline plus xi xi Subscript t EndLayout

where normal upper Phi normal upper Phi equals left-parenthesis 0 phi 12 semicolon phi 21 phi 22 right-parenthesis and normal upper C normal o normal v left-parenthesis xi xi Subscript t Baseline right-parenthesis equals normal upper Sigma 2 is parameterized as (esd1*esd1 -esd1*esd2; -esd1*esd2 esd2*esd2). The program that produces the reduced model is a simple modification of the preceding program and is not shown.

Output 33.13.4: Estimates of normal upper Sigma 1, and normal upper Sigma 2 (Reduced Model)

Estimates of Named Parameters
Parameter Estimate Standard
Error		 t Value
rho1 0.8526 0.0978 8.71
msd1 0.2472 0.0282 8.78
msd2 0.1955 0.0365 5.36
esd1 0.0679 0.0385 1.76
esd2 0.1372 0.0328 4.18


Output 33.13.5: Estimates of Lag Coefficients (elements of normal upper Phi normal upper Phi) (Reduced Model)

Model Parameter Estimates
Component Type Parameter Estimate Standard
Error		 t Value
LagsForMink Lag Coefficient Of LogMusk Lag[1] 0.330 0.0986 3.35
LagsForMusk Lag Coefficient Of LogMink Lag[1] -0.997 0.1168 -8.54
LagsForMusk Lag Coefficient Of LogMusk Lag[1] 0.668 0.1003 6.66


The tables in Output 33.13.4 and Output 33.13.5 show the new parameter estimates. By examining the parameter estimates, you can easily see that this model supports the general conclusions mentioned at the start of this example. In particular, note the following:

  • ModifyingAbove phi With caret Subscript 12 Baseline equals 0.33 implies that this year’s mink abundance is positively correlated with last year’s muskrat abundance.

  • ModifyingAbove phi With caret Subscript 21 Baseline equals negative 0.99 and ModifyingAbove phi With caret Subscript 22 Baseline equals 0.66 imply that this year’s muskrat abundance is negatively correlated with last year’s mink abundance and positively correlated with last year’s muskrat abundance.

  • Even though the parameters were not restricted to ensure stability, the estimated normal upper Phi normal upper Phi turns out to be stable with a pair of complex eigenvalues, 0.317 ModifyingAbove plus With minus i Baseline 0.473, and a modulus of 0.570 (these calculations are done separately by using the IML procedure).

  • The fact that elements of xi xi Subscript t are perfectly negatively correlated further supports the predator-prey relationship.

Finally, Output 33.13.6 shows the plots of one-step-ahead and post-sample forecasts for LogMink and LogMusk, and Output 33.13.7 shows the plot of the smoothed (full-sample) estimate of the first element of mu mu Subscript t: LogMink Trend.

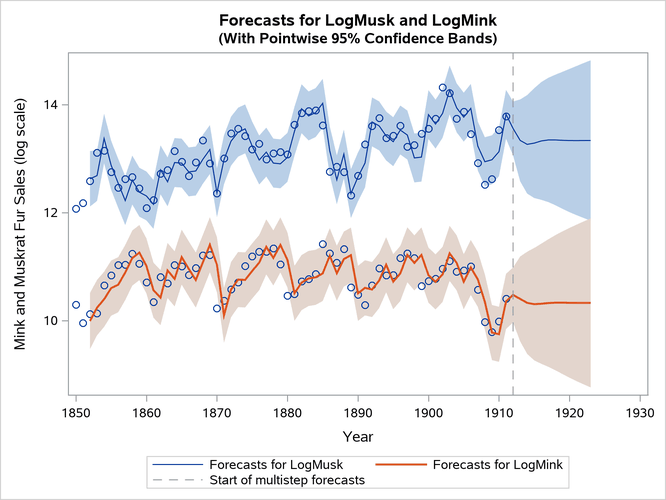

Output 33.13.6: Forecasts for Mink and Muskrat Fur Sales in Logarithms

Forecasts for Mink and Muskrat Fur Sales in Logarithms

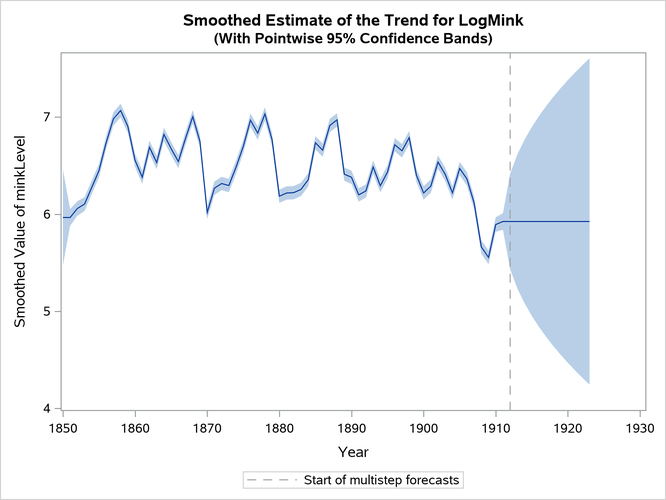

Output 33.13.7: Smoothed Estimate of LogMink Trend

Smoothed Estimate of LogMink Trend
