MODEL Procedure

Example 24.9 Circuit Estimation

(View the complete code for this example.)

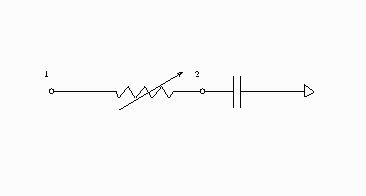

Consider the nonlinear circuit shown in Output 24.9.1.

Output 24.9.1: Nonlinear Resistor Capacitor Circuit

modcirc


The theory of electric circuits is governed by Kirchhoff’s laws: the sum of the currents flowing to a node is zero, and the net voltage drop around a closed loop is zero. In addition to Kirchhoff’s laws, there are relationships between the current I through each element and the voltage drop V across the elements. For the circuit in Output 24.9.1, the relationships are

upper C StartFraction d upper V Over d t EndFraction equals upper I

for the capacitor and

upper V equals left-parenthesis upper R 1 plus upper R 2 left-parenthesis 1 minus normal e normal x normal p left-parenthesis negative upper V right-parenthesis right-parenthesis right-parenthesis upper I

for the nonlinear resistor. The following differential equation describes the current at node 2 as a function of time and voltage for this circuit:

upper C StartFraction d upper V 2 Over d t EndFraction minus StartFraction upper V 1 minus upper V 2 Over upper R 1 plus upper R 2 left-parenthesis 1 minus normal e normal x normal p left-parenthesis negative upper V right-parenthesis right-parenthesis EndFraction equals 0

This equation can be written in the form

StartFraction d upper V 2 Over d t EndFraction equals StartFraction upper V 1 minus upper V 2 Over left-parenthesis upper R 1 plus upper R 2 left-parenthesis 1 minus normal e normal x normal p left-parenthesis negative upper V right-parenthesis right-parenthesis right-parenthesis upper C EndFraction

Consider the following data:

data circ;
   input v2 v1 time@@;
datalines;
-0.00007 0.0 0.0000000001 0.00912 0.5 0.0000000002
 0.03091 1.0 0.0000000003 0.06419 1.5 0.0000000004
 0.11019 2.0 0.0000000005 0.16398 2.5 0.0000000006
 0.23048 3.0 0.0000000007 0.30529 3.5 0.0000000008
 0.39394 4.0 0.0000000009 0.49121 4.5 0.0000000010
 0.59476 5.0 0.0000000011 0.70285 5.0 0.0000000012
 0.81315 5.0 0.0000000013 0.90929 5.0 0.0000000014
 1.01412 5.0 0.0000000015 1.11386 5.0 0.0000000016
 1.21106 5.0 0.0000000017 1.30237 5.0 0.0000000018
 1.40461 5.0 0.0000000019 1.48624 5.0 0.0000000020
 1.57894 5.0 0.0000000021 1.66471 5.0 0.0000000022
;

You can estimate the parameters in the preceding equation by using the following SAS statements:

title1 'Circuit Model Estimation Example';

proc model data=circ mintimestep=1.0e-23;
   parm R2 2000  R1 4000 C 5.0e-13;
   dert.v2 = (v1-v2)/((r1 + r2*(1-exp( -(v1-v2)))) * C);
   fit v2;
run;

The results of the estimation are shown in Output 24.9.2.

Output 24.9.2: Circuit Estimation

Circuit Model Estimation Example

The MODEL Procedure

Nonlinear OLS Parameter Estimates
Parameter Estimate Approx Std Err t Value Approx
Pr > |t|
R2 3002.471 1517.1 <------ Biased
R1 4984.842 1466.8 <------ Biased
C 5E-13 0 <------ Biased

Note: The model was singular. Some estimates are marked 'Biased'.



In this case, the model equation is such that there is linear dependency that causes biased results and inflated variances. The Jacobian matrix is singular or nearly singular, but eliminating one of the parameters is not a solution in this case.
